CATV system/ PSA 350

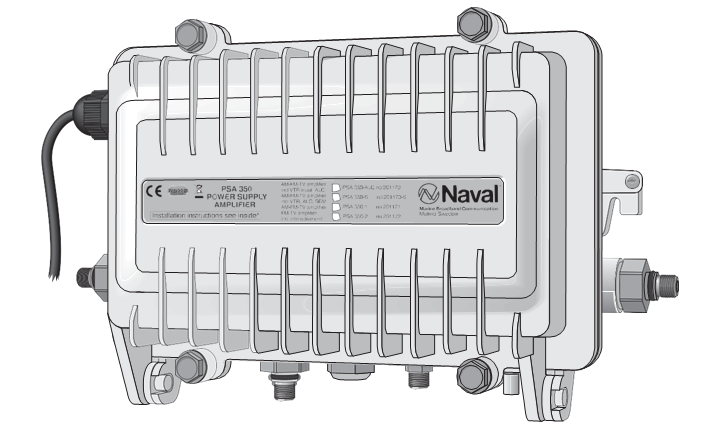

The PSA 350S/ALC compact power supply and amplifier is designed to supply power to the Mark- and VPA-active antenna series as well as amplifying Radio and TV signals for distribution in a medium-sized network.
The unit is equipped with an S-Band input for distribution of cable-TV channels or modulated satellite channels. A separate Ch38 Input allows connecting a VTR/DVD.

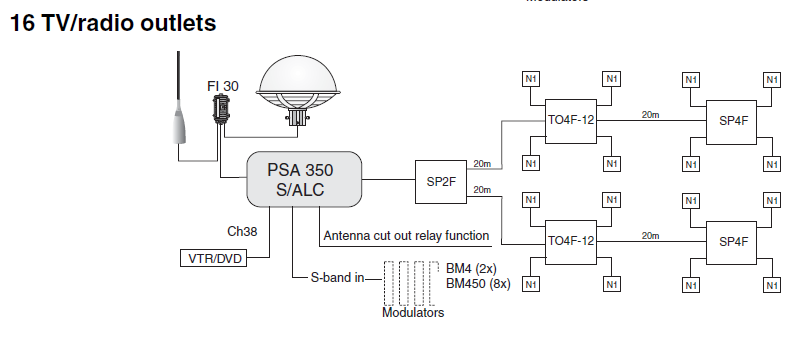

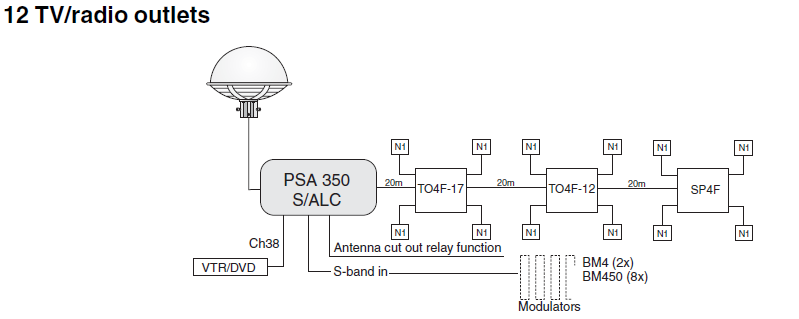

An inbuilt Automatic Level Control reduces gain in case of overload. Gain can also be set manually. Like all other Naval products, the PSA 350S/ALC series is designed to meet the special requirements of world-wide marine use. See overleaf for further details of specific applications. The PSA 350S/ALC accepts 117 and 230 VAC
Product DescriptionFile DownloadProduct Specification
TECHNICAL SPECIFICATIONS
| General Operation temperature range: -40 – +35 C° Indoor use only. Humidity: <95% non condensing EMC: EN 50083-2 Safety: EN 60065 Net weight: 2.6 kg | Electrical Input voltage: 117/230 VAC +10/-15%, 50–60 Hz Output to antennas: 15VDC ±5%, Max 300 mA Input/Output impedance: 75 ohm |
| Frequency range/Gain AM 0.1-26.5 MHz/min. 15 dB Band I/FM 48-130 MHz/min. 34 dB VHF 170-230 MHz/min. 34 dB S-Band 252-429 MHz/min. 34 dB, S14-S36 UHF 470-890 MHz/min. 32 dB | Miscellaneous ALC attenuation 0-10 dB Noise figure max. 7 dB Output level, 2 sign 60 dB IMA: max. 120 dBμV Manual attenuation 0.1-30 MHz 0-13 dB Manual attenuation 40-890 MHz 0-18 dB |
 | Mechanical Input/output connectors F-Female VTR/S-Band connectors F-Female Size (H) 165 mm x (W) 230 mm x (D) 85 mm |
