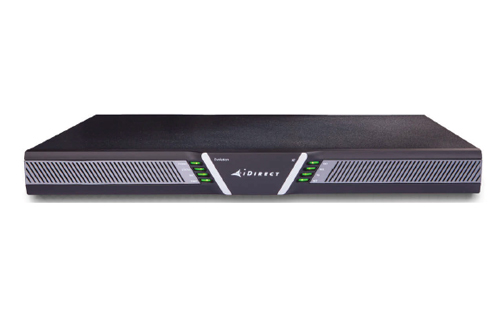

Network Configuration | Network Topology | Star | | | | Downstream DVB-S2 | Upstream A-TDMA | SCPC Return* | Modulation | QPSK, 8PSK, 16APSK | BPSK, QPSK, 8PSK | BPSK, QPSK, 8PSK | FEC | LDPC, 1/4 - 8/9 | 2D 16-State, 1/2 - 6/7 | 2D 16-State, 1/2 - 6/7 | Max. Symbol Rate | 1 - 45 Msps | 128 ksps - 7.5 Msps | 128 ksps - 11.75 Msps | Max. Info Rate | Up to 150 Mbps | 18 Mbps | 30 Mbps | Max. IP Data Rate | (TBD) | | | Max rates are achieved under optimal conditions. | Spread Spectrum (Max Rate Mcps) | | | Up to 7.5 Mcps Spreading Factors: 2, 4, 8 | Interfaces | SatCom Interfaces | TxIF: Type-F, 950 - 1950 MHz, Composite Power +3dBm / -35dBm Rx1/Rx2* IF: Type-F, 950 - 2150MHz, -5dBm (max) composite / -130+10*Log10(Sym rate) dBm (min) single carrier | Available BUC Power (IFL) | +24V, 118W max available @ connector +48V, 158W max available @ connector (optional) | | Available LNB Power (IFL) | +19V (Nominal), 22KHz DiSEqC tone Rx1/Rx2 In: 13-18V @ 0.5A | | Data Interfaces | LAN: 8-port ethernet switch, 10/100, 802.1q VLAN RS-232: RJ45 (Console connection) RS-422 BUC I/O port (future release) | | Protocols Supported | TCP, UDP, ACL, ICMP, IGMP, RIP Ver2, Static Routes, NAT, DHCP, DHCP Helper, Local DNS Caching, OpenAMIP, cRTP and GRE | Traffic Engineering | Group QoS, QoS (Priority Queuing and CBWFQ), Strict Priority Queuing, Application Based QoS, Minimum CIR, CIR (Static and Dynamic), Rate Limiting | Mechanical/ Environmental | Size | W 17.5 in (44.5 cm) x D 12 in (30.5 cm) x H 1.75 in (4.45 cm) | Weight | 10 lbs (4.54 kg) | | | Operating Temperature | 0? to +50?C (32? to +122?F) at Sea Level with temperature gradient of 1?C per 1 min | Humidity Input Voltage | 90% non-condensing humidity 100–240 VAC, Auto-Ranging ±36-76VDC (±48 VDC nominal) (optional) | | Radio Standards | EN 301-428 v1.3.1 — Ku-Band System Level Specification EN 301-443 v1.3.1 — C-Band System Level Specification EN 301-459 v1.4.1 — Ka-Band System Level Specification | Safety Standards | Complies with IEC 60950, EN 60950-1, UL 60950-1, CSA C22.2 No.60950-1-03 | Emission Standard | Complies with EN 55022 Class B, FCC Part 15 Class B, CISPR 22 Class B, EN 61000-3-2, EN 61000-3-3 | EMC/Immunity Standard | Complies with EN 55024, EN 301-489-1, EN 301-489-12, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11 | Certification | FCC, CE and RoHS compliant | |
|
